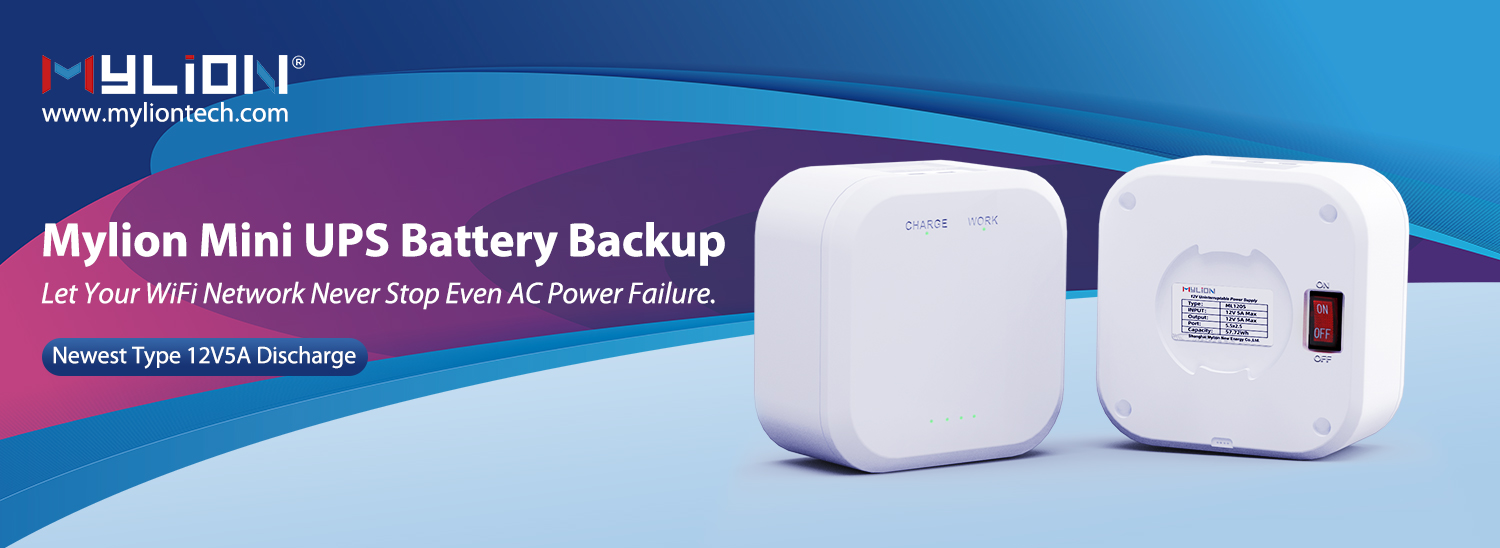

Mylion 12V 5A 77.7Wh Mini UPS lithium battery pack backup Uninterruptible Power Supply for WiFi 7 ONT Smart Home

Mylion Mini UPS adopts an Anti-fire ABS plastic shell. It also has overcharge/over-discharge/current/short circuit protection and is equipped with a silent fan to dissipate heat for the mini UPS. There are 4 LED lights on the top to show the battery level. It can provide more than 9 hours of backup power for a 12V0.5A router.

Mylion 12V 5A 77.7Wh Mini UPS lithium battery pack backup Uninterruptible Power Supply for WiFi 7 ONT Smart Home

Mylion 12V 5A 77.7Wh Mini UPS lithium battery pack backup Uninterruptible Power Supply for WiFi 7 ONT Smart Home

Style name MU35W
Battery type Lithium battery Panasonic/LG Li-ion cell
Output voltage 12V
Output current 5A Max
Battery capacity 77.7Wh
Input voltage 12VDC
Input current 6A Max
Working time 13-14 hours backup time for 12V0.5A device
4-5hours backup time for 12V2A device

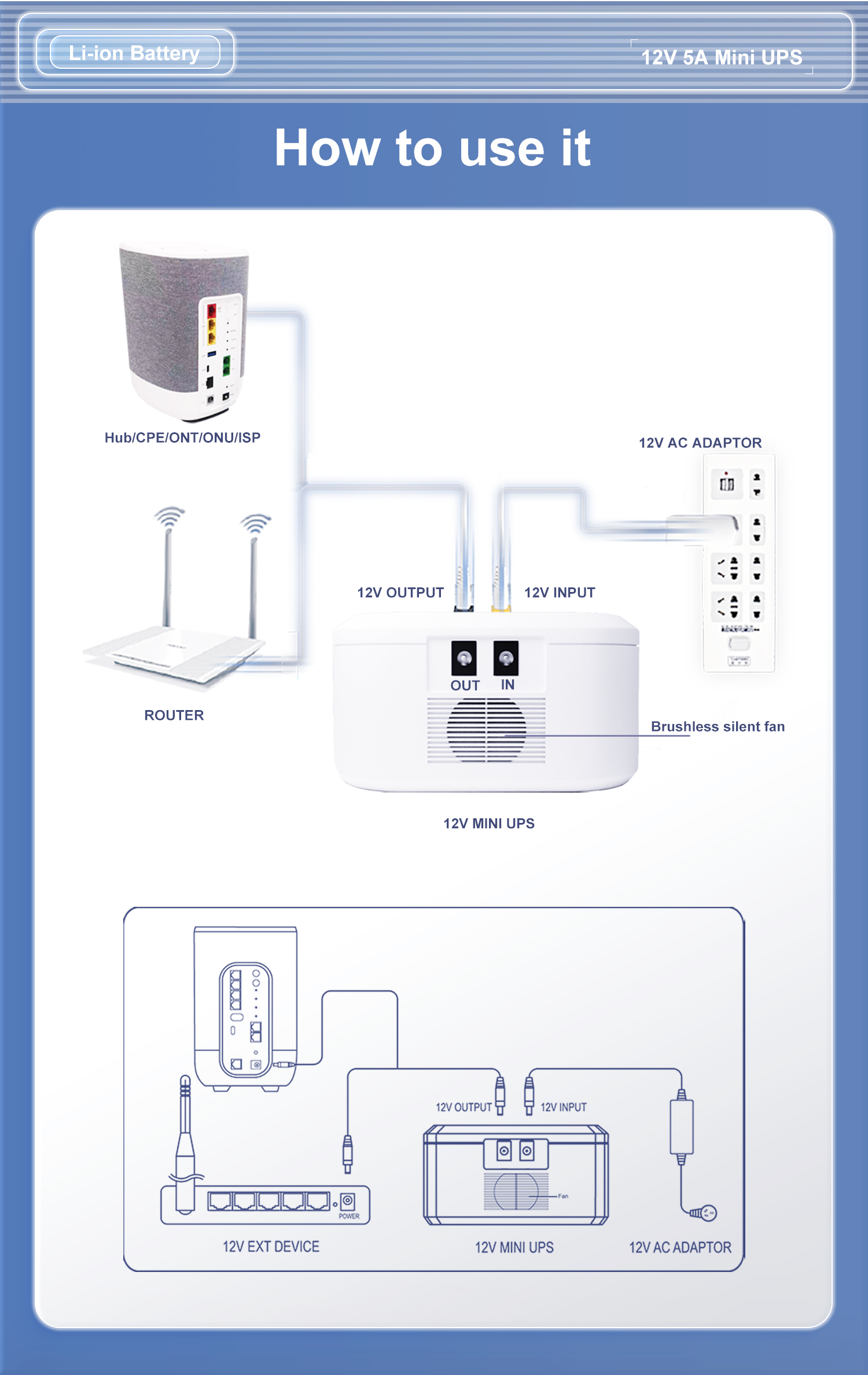

Charge port(IN) Black DC.5.5×2.1
Discharge port(OUT) Yellow DC.5.5×2.5

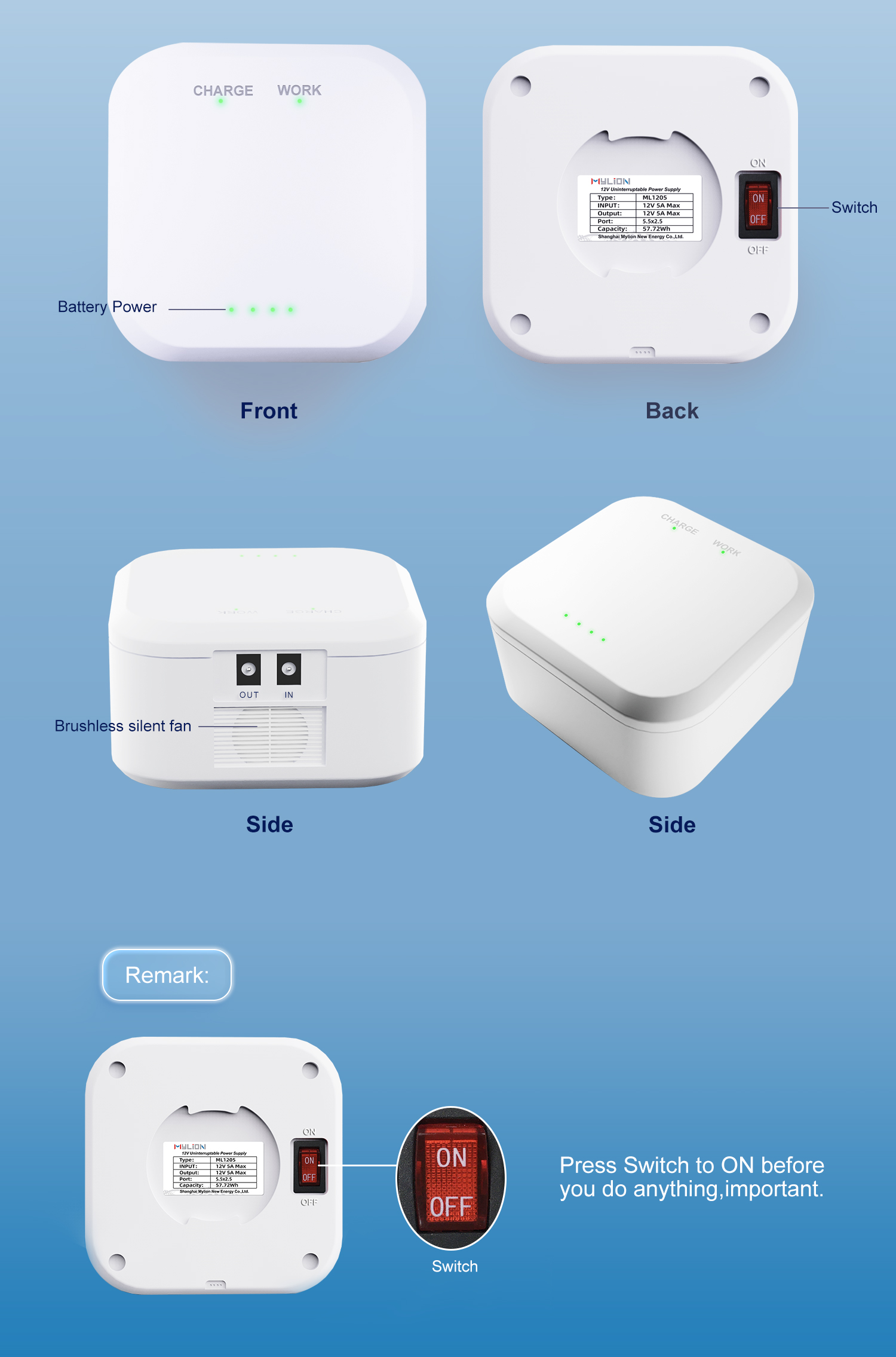

LED indicator 4pcs LED Show battery condition
Fan Brushless motor silent fan for heat dissipation
Switch Put Switch to ON before you use it
Case material ABS Anti-fire plastic
Case color White
Case material Anti-fire ABS

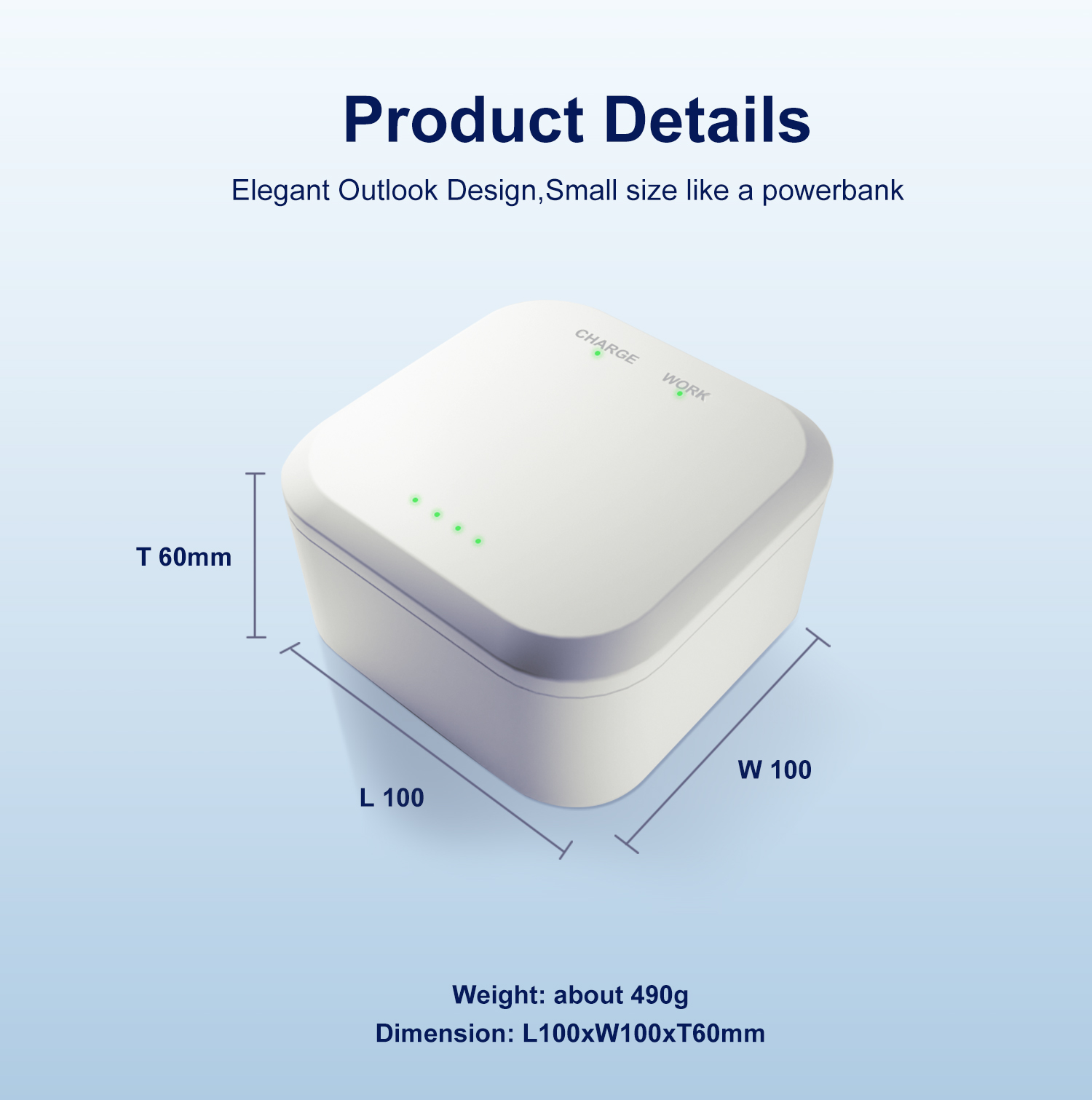

Case dimension L100xW100xT60mm
Weight 490g

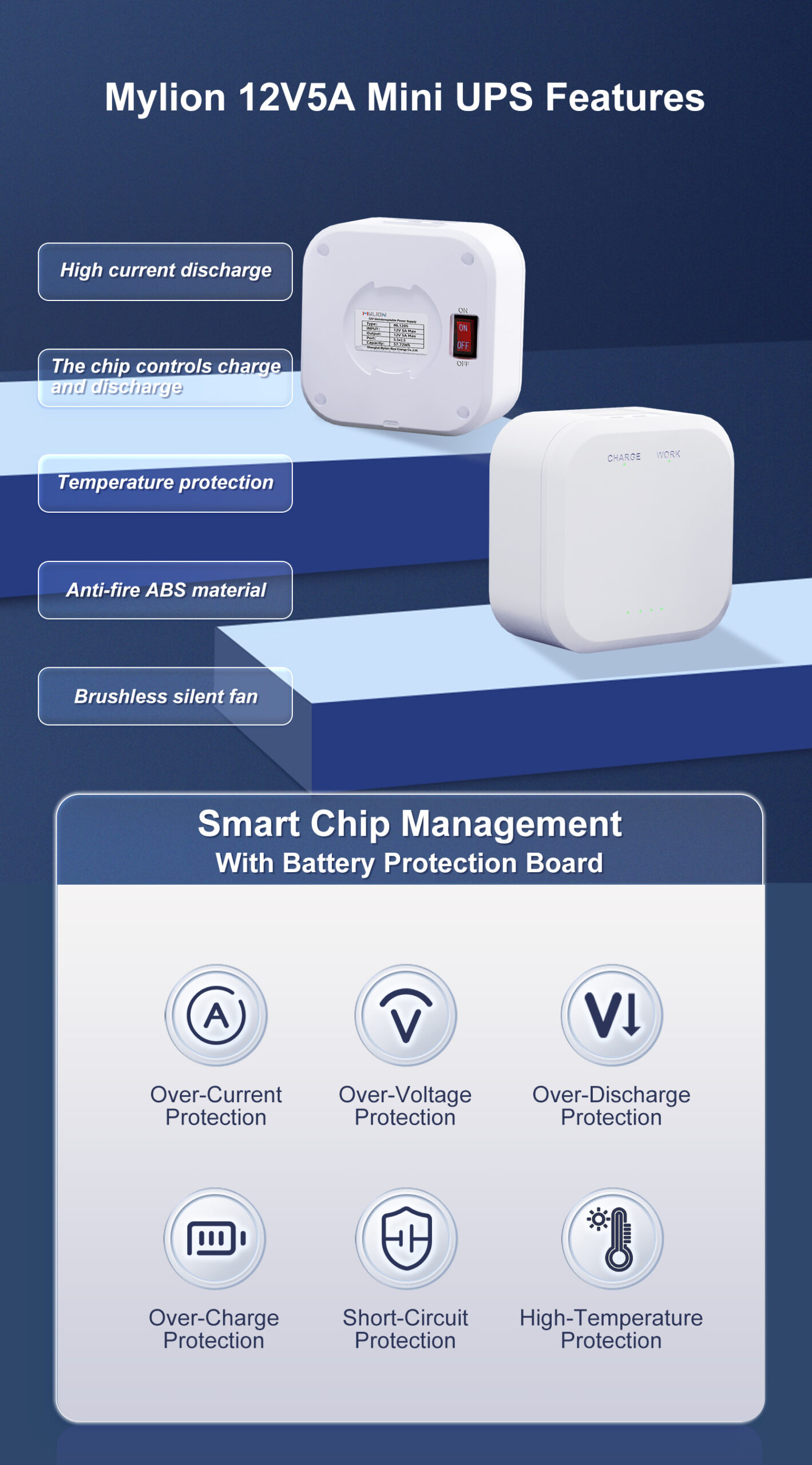

Feature Smart IC control, charge & discharge & temperature

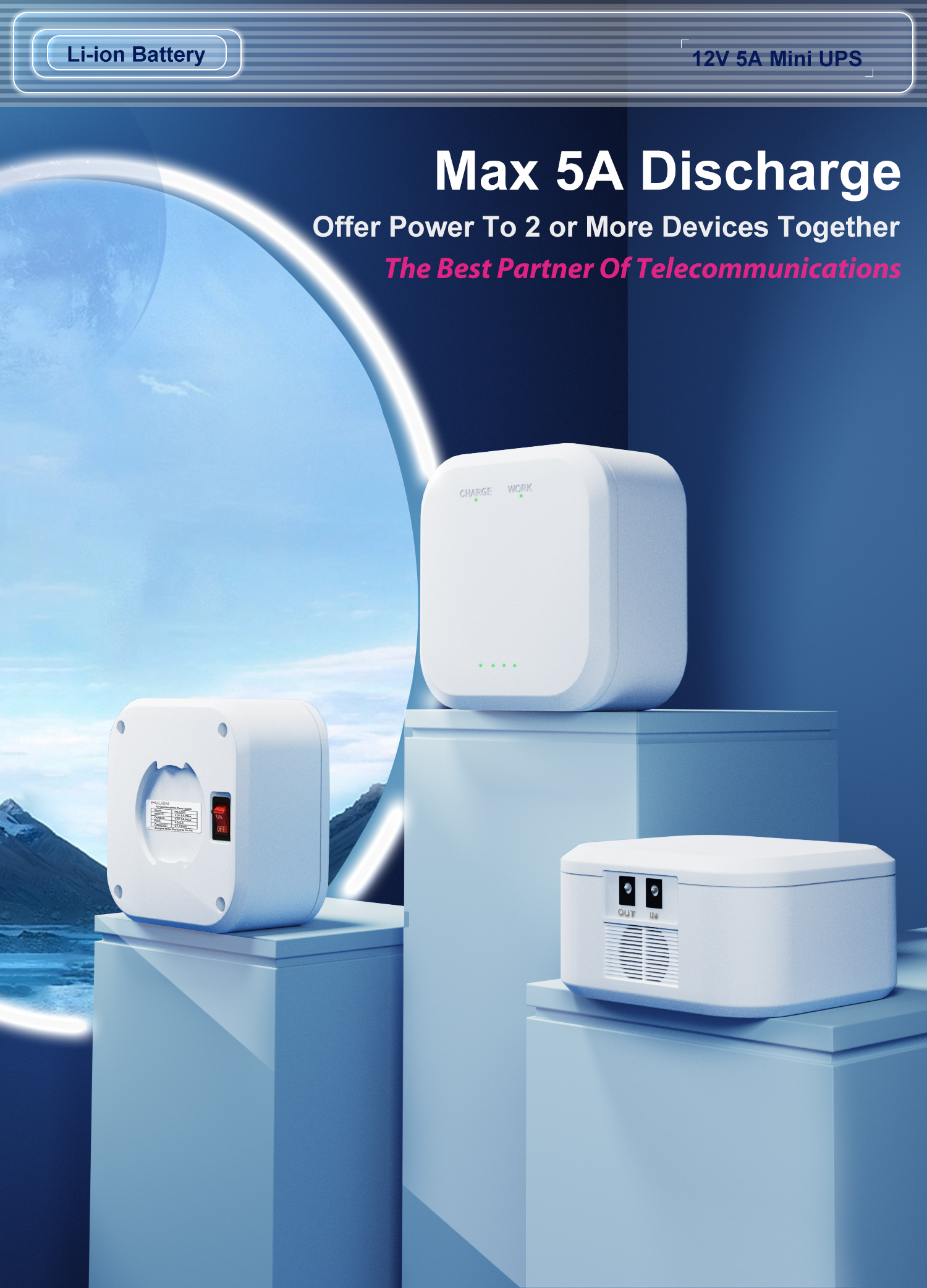

5A work current can bear 2 or more devices together

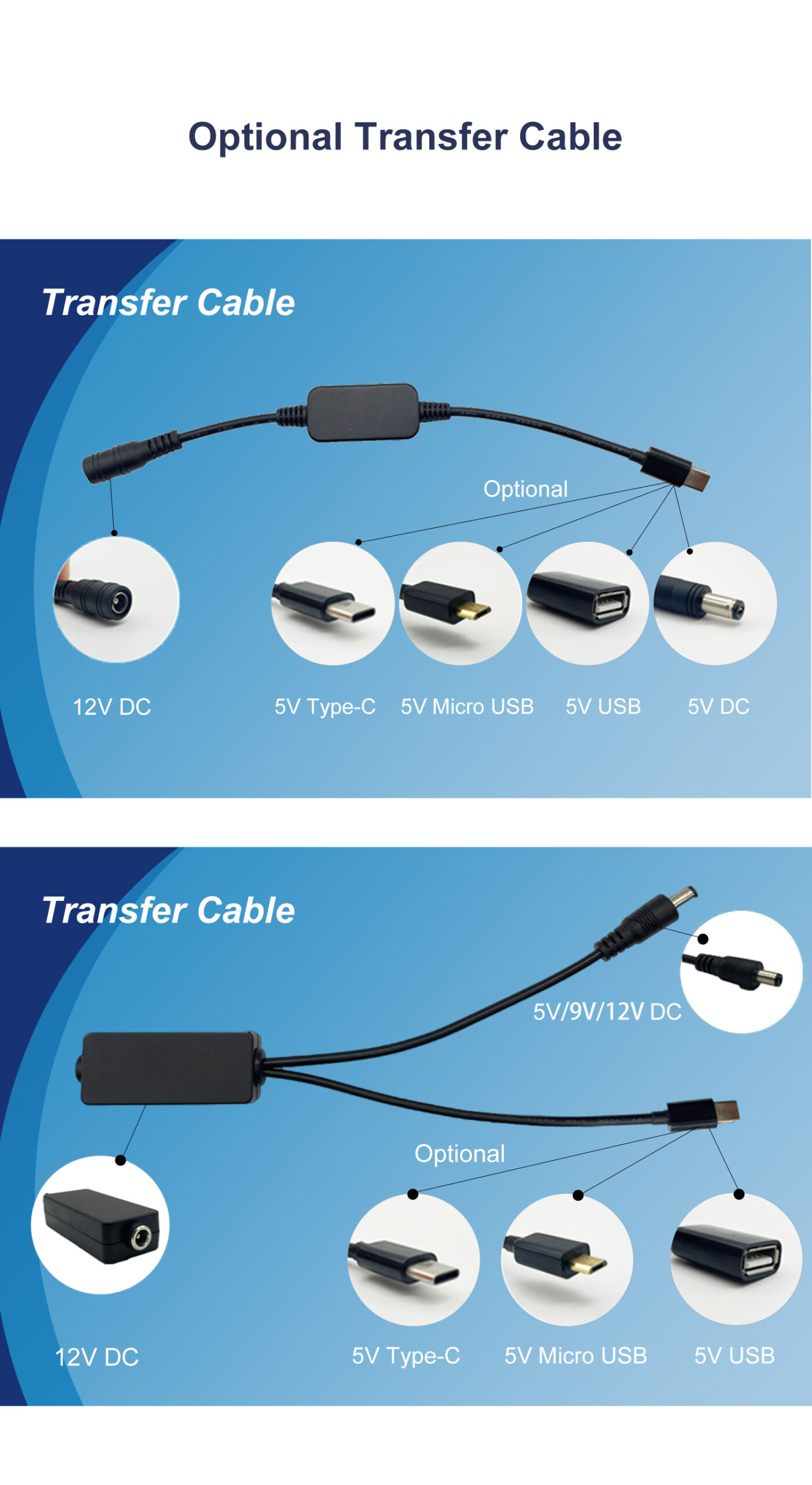

Optional transfer cable can offer different voltage output
Application Router/CPE/ONT/ONU/HUB/Voip Phone/ IP Camera/Security

System/Door Access

Gift box dimension L130xW104xT68mm
Certification CE, IEC62133,CB, EMC,ROHS, UKCE,FCC, UL Testing
Optional AC Adaptor Matched AC Adaptor 12V6A is optional, if you need it, pls. kindly contact Mylion salesman
Package 18pcs in a carton(35x21x30cm), about 9.5kgs/carton

FAQ:

1. What are the main functions of the product?

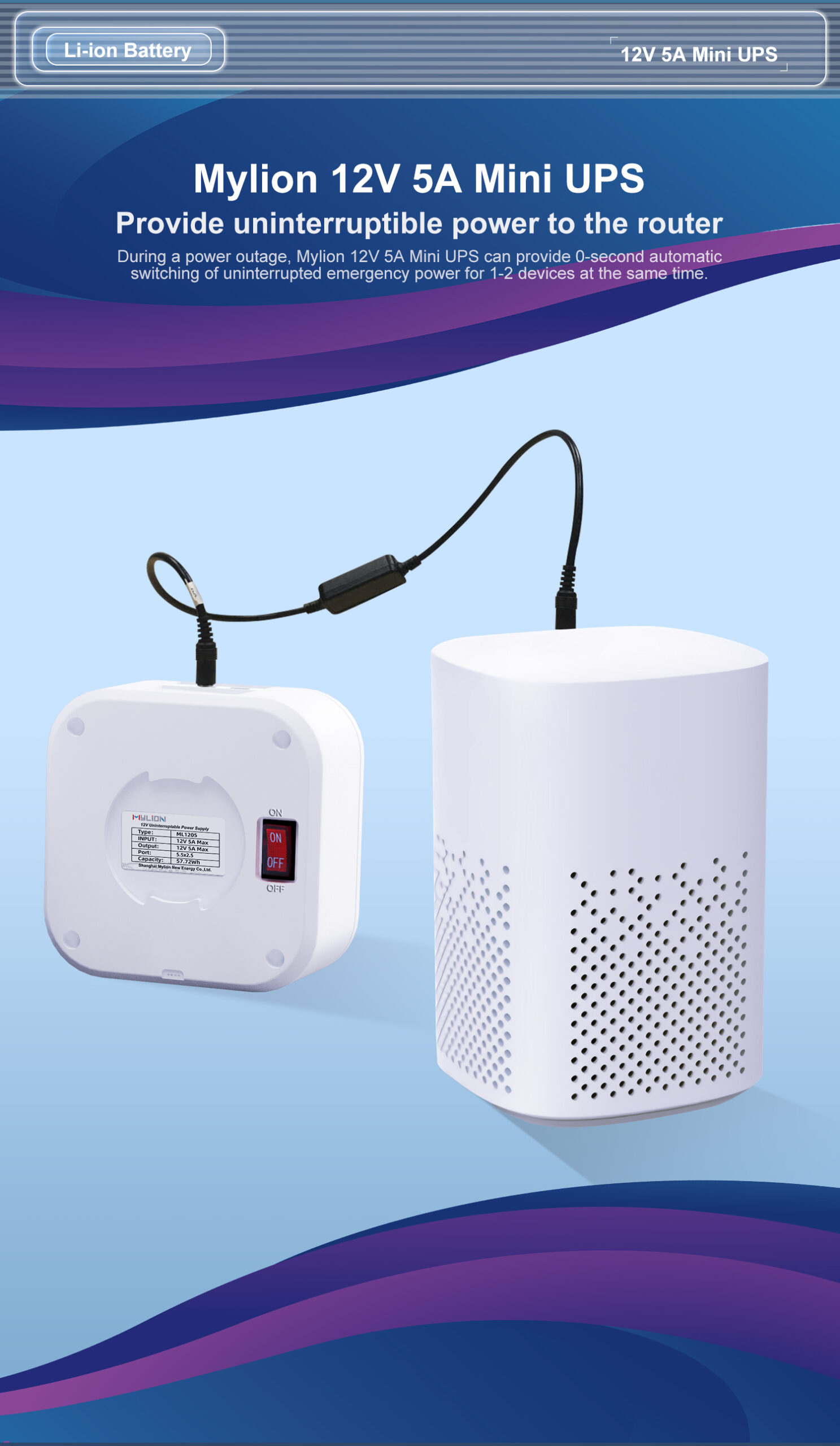

Mylion: It can provide 0-second automatic switching of uninterrupted emergency power for the router/device during a power outage.
2. Are there any user guides or online support?
Mylion: Yes, there will be instructions in each of our products, or we can also provide you with operation videos.
3. Does this product have a warranty? How long is the warranty period? If something goes wrong, how do I apply for repair or after-sales service?
Mylion: Sure. Our warranty period is 12 months. If there is any non-human damage, you can contact us for replacement.
4. Can it connect with multiple devices at the same time?
Mylion: Yes. It can backup power 2 or 3 devices at the same time. Offer optional different voltage conversion cables to match different voltage applications.
5. In what scenarios or industries can it be used?
Mylion: Widely used in the telecommunications network industry. Our mini ups battery backup offers interrupted power to WiFi Router/ONT/ONU/CPE/IoT/IP Telephone/Gateway/smart home system/CCTV cameras etc.
6. Is it safe?
Mylion: Sure. Anti-fire ABS material and protection circuit temperature protection, over charge/discharge/current/short circuit.
7. What kind of support can we get if we encounter technical problems?
Mylion: You can feedback questions to our sales staff, or provide you with all help via phone or video conference.
8. How to purchase this product? Are there any special purchasing channels or suggestions?
Mylion: You can click Inquiry to get in touch with us or add sales staff contact information, it’s up to you.
9. Is international shipping possible?
Mylion: Yes. We support express delivery, air transportation, sea transportation, etc. Hope these questions above can help you better understand
our products.
