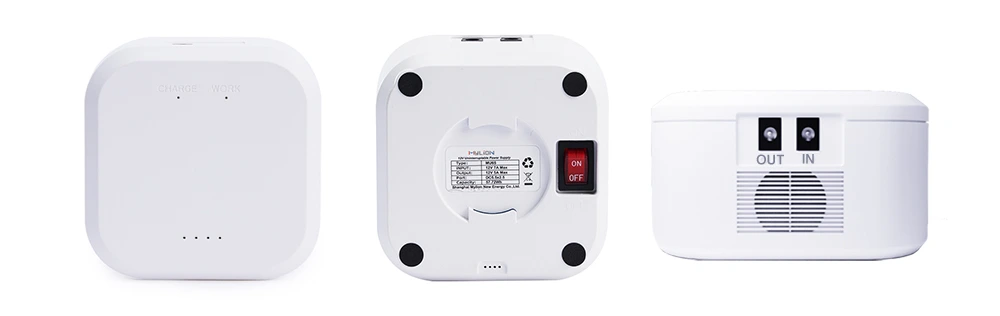

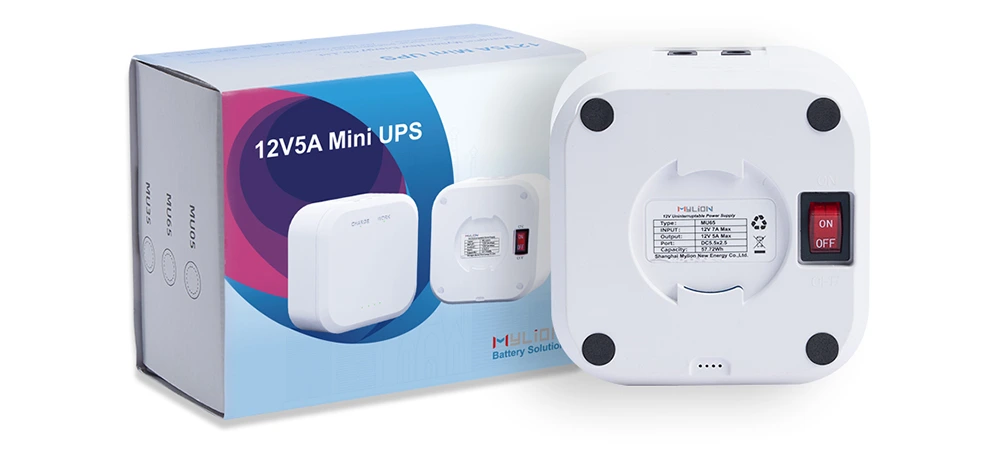

MU35 12V 5A DC Mini UPS

MU35 12V 5A Mini UPS for High-Power Router and Network Backup

A compact DC backup solution designed for higher-load routers, ONTs, modems, and network devices in telecom and ISP applications.

Standard Mini UPS Models Are Not Enough for Higher-Power Devices

Many broadband and network devices require more than standard 12V 2A or 12V 3A backup support. When backup power is undersized, devices may fail to start, reboot repeatedly, or lose connectivity during outages.

High-power routers cannot run reliably on lower-current backup models

Some ONT / gateway devices require stronger startup current

Service interruption increases customer dissatisfaction

Wrong model selection creates deployment risk

A Higher-Power 12V Backup Solution for Demanding Network Devices

MU35 is engineered to provide stable 12V 5A DC backup for higher-load routers, gateways, modems, and other network equipment.

12V 5A output for higher-load devices

More suitable for demanding broadband equipment

Reliable backup for telecom and network deployment

Key Features of MU35

Backup Time Depends on Real Device Load

MU35 is designed for higher-power applications, so runtime should be evaluated based on actual connected load.

MYLION can help estimate actual runtime according to your device power consumption and project requirements.

Built for Higher-Load 12V Network Devices

MU35 is suitable for 12V devices that require stronger current support, such as:

High-power WiFi routers

Network gateways

Higher-load modems

Selected ONT / CPE devices

Other 12V DC equipment within supported load range

Please confirm voltage, current, connector size, and real power draw before deployment.

Technical Specification

MU35 is designed for higher-power applications, so runtime should be evaluated based on actual connected load.

MU05/MU35/MU65

Weight: about 490g

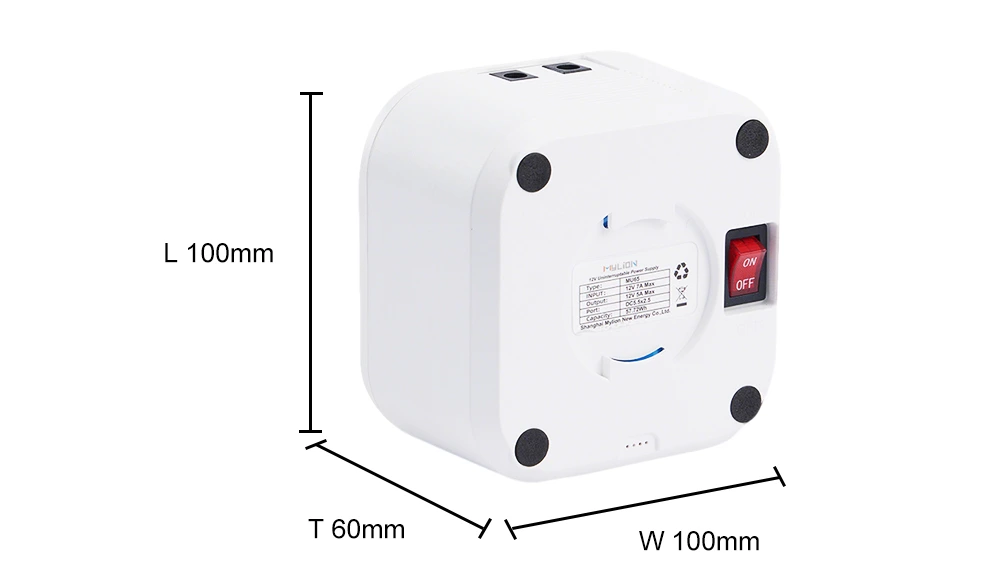

Dimension: L100 x W100 x T60 mm

Model	MU35	Input Voltage	12V DC, 6A Max
Output Voltage	12V DC, 5A Max	Output Power	77.7Wh
Battery Capacity	77.7Wh	Transfer Time	0ms (Zero Transfer Time)
Dimensions	L100W100H60mm	Weight	approx. 490 g
Case Material	Fire-resistant ABS	Battery Indicator	4LED Lights
Certifications	CE/FCC/IEC62368/	Warranty Period	12 Months

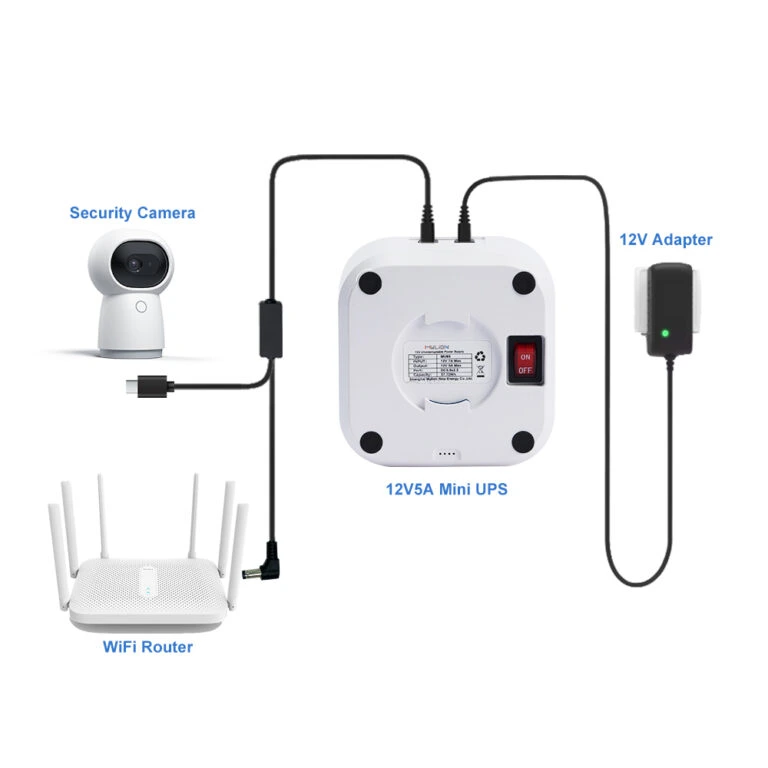

Typical Applications

MU35 is suitable for higher-load backup applications such as:

Suitable for home internet backup, telecom deployment, security systems and small DC backup applications.

OEM / ODM and Project Support

MYLION supports project-based customization for customers who need more than a standard retail backup product.

Your Strategic Manufacturing Partner for Global Tenders

MYLION focuses on Mini UPS and DC backup solutions for real telecom and network applications.

Strict Quality Control for Project Deployment

For higher-power backup applications, stable performance and consistent production quality are critical.

FAQs

Q1. Is MU35 better than a standard 12V 3A Mini UPS?

MU35 is more suitable for devices that require higher current support. It is not simply “better” for every application. Model selection depends on your actual device load.

Q2. Can MU35 power a high-power router?

Yes, MU35 is designed for higher-load 12V applications, but actual compatibility should be confirmed with voltage, current, connector size, and device power draw.

Q3. What is the backup time of MU35?

Backup time depends on the connected load. MYLION can help estimate runtime based on your device power consumption.

Q4. Do you support OEM / ODM?

Yes. Custom label, packaging, cable, and selected project customization are available.

Q5. Is MU35 suitable for telecom and ISP projects?

Yes. It is designed for network backup applications where higher current output is needed.

Need a Higher-Power 12V Mini UPS for Your Project?

Talk to MYLION for model recommendation, sample support, and project discussion.
