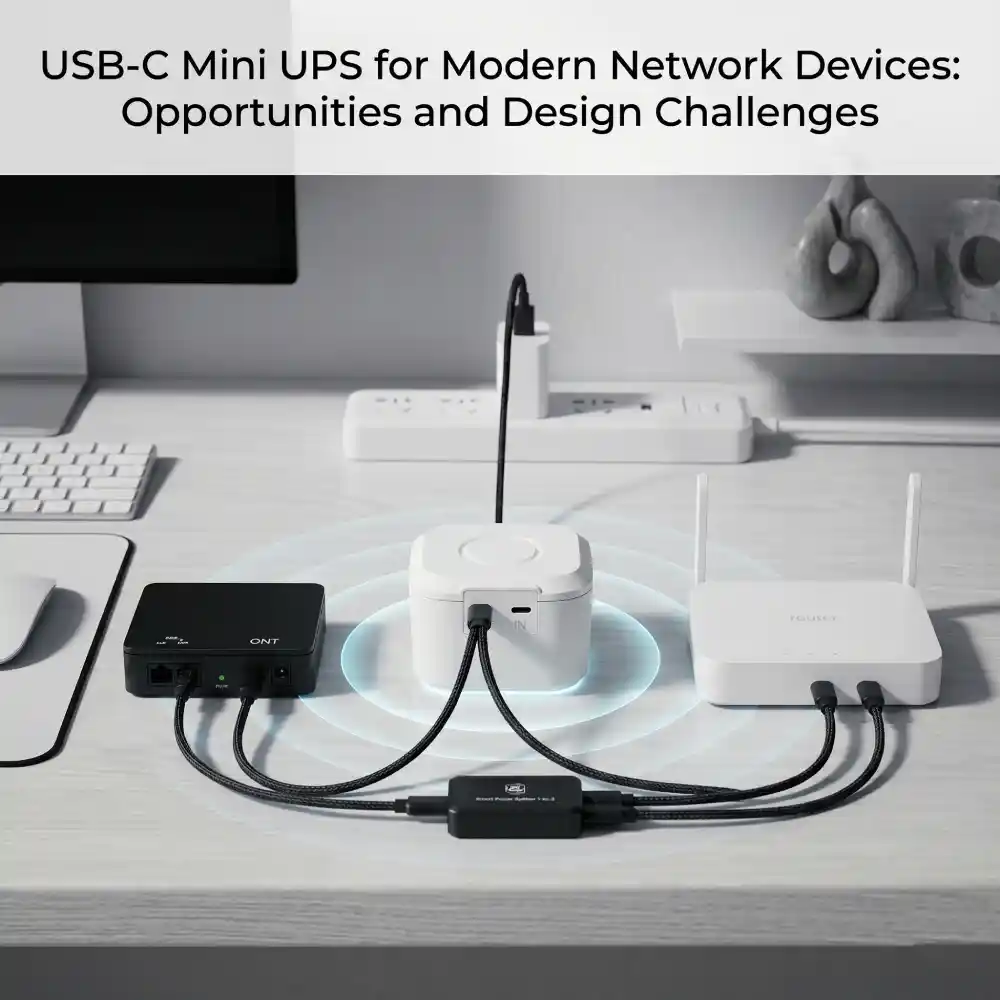

USB-C Mini UPS for Modern Network Devices: Opportunities and Design Challenges

For ISPs, every minute of unplanned CPE downtime translates into SLA penalties, support calls, and churn. The root cause is often not the network itself but the power supply: voltage sags, micro-outages, or complete blackouts at the customer premises. Traditional UPS units are too large, expensive, and inefficient for low-power 12V devices like ONTs, ONUs, and routers. Edge nodes are distributed, and centralised backup power simply does not reach them.

Mylion MUC85 is a 92-watt-hour USB-C Mini UPS specifically designed for telecomm edge scenarios. It delivers true zero-switch backup to keep ONT/ONU and routers alive through power disturbances, without the bulk of legacy UPS.

Market Opportunities – Why USB-C Mini UPS is a Key Infrastructure in 2026

1. Explosive growth of edge network devices and terminal CPE

FTTH continues to penetrate, and the number of end devices, such as ONT/ONU/CPE, has increased significantly, making centralized UPS coverage inadequate.

How MUC85 responds: With 65W PD output and 65W PD input, a single MUC85 simultaneously powers both an ONT and a router.

2. "Unreliable Power Supply" issue on a large scale

In many markets, grid instability is the primary cause of network downtime. ISPs face SLA penalties, accelerated user churn, and long‑term reputational damage when CPE goes offline.

The core value of MUC85: Operating time ranging from 4 to 5 hours (at 12W load) to 1 hour (at 60W load).This bridges most short-duration outages and voltage sags, keeping subscribers connected and SLAs intact.

3. High reliability of continuous power backup

Traditional mobile power sources are only suitable for a temporary supplementary power supply. This level of reliability is insufficient for 24/7 online CPE protection.

High reliability MUC85: The 0ms zero–switching time provided by MUC85 represents a fundamentally different technical architecture. This single specification transforms an unreliable grid into a predictable network uptime for ISP subscribers.

Design Challenges – Why a True USB-C Mini UPS Is Not Trivial

Challenge 1: 0ms Switching Is Not a Marketing Slog

Low-cost UPS products often use power-bank circuits with switching gaps of 100–300ms. Most network equipment reboots if power is interrupted for more than 20ms. Achieving sub-20ms switching in a compact, low-cost DC system requires fast MOSFET arrays, precise input loss detection, and a battery boost converter that can take over instantly.

Challenge 2: Thermal Stability & Cycle Life Under 24/7 Float Charging

Running a Mini UPS always-on (pass-through mode) means the battery is constantly floating. Without smart charge management, lithium cells overheat and degrade rapidly. Designers must implement independent charge paths, temperature monitoring, and adaptive current limiting-all inside a small enclosure.

Challenge 3: Capacity vs. Safety Under Size/Weight Constraints

Fiber node boxes and wall-mount spaces are extremely tight. A high-capacity battery (92Wh) must fit into a compact footprint without compromising safety. Fire-retardant materials, proper cell spacing, and over-current protection are mandatory, yet they add complexity and cost.

MUC85 Product Deep Dive – Functional Modules & Real‑World Scenarios

1. DC Input/Output Specifications

Input: 12V DC 6A Max
Output: 12V DC 5A Max (60W), 92Wh capacity

MUC85 directly delivers 12V DC, the native voltage of most ONTs, ONUs, and routers. No inefficient step-up cables.

2. True Zero-Switch Reliability

MUC85 specifies Transfer Time: 0ms. When input power fails, the battery output engages without any measurable interruption.

3. Smart Charging & Management for ISP Bulk Deployment

Four LED indicators show state of charge at a glance, field technicians can quickly verify backup readiness. An intelligent IC automatically manages charge/discharge cycles, plus over-current and over-temperature protection.

4. Certification Completeness – The B2B Entry Ticket

MUC85 carries CE, FCC, IEC 62368-1, and UN38.3 certifications. CE and FCC cover the EU and North American market access.

5. Target Application Slices for MUC85 (ISP + Integrator + End User)

Broadband subscriber ONT/ONU backup: Typical ONT power: 12- MUC85 delivers 2-2.5 hours runtime, covering most short outages and voltage dips.
SOHO and branch office network cabinets: Power a small router, network switch, and VoIP adapter simultaneously with its 12V 5A output.
Remote telecom nodes/edge cloud gateways: Deployed inside FTTH distribution boxes alongside a 12V DC bus. The compact size (100×100×60mm) fits where traditional UPS cannot.

6.OEM/ODM support:

Mylion offers custom branding, cable configuration, and engineering samples for volume projects.

Design Challenges Revisited – MUC85 Mini UPS Engineering Responses

Design Challenge	MUC85 Engineering Response	Key Parameter
Switching delay & device reset risk	True 0ms switching	Transfer Time: 0ms
Long-term float charging stability & thermal management	Smart Battery monitoring; over-current & over-temperature protection	12V DC charge management
Capacity vs. safety under size/weight limits	580g, fire-retardant ABS, 92Wh high-density Li-ion	100×100×60mm
Market access & customer confidence	Four global certifications	CE, FCC, IEC62368-1, UN38.3

B2B Procurement & Integrator Decision Guide

Before selecting MUC85 for your project, verify:
- Device voltage: Does your CPE accept 12V DC (direct or via barrel jack)?
- Deployment space: Will it fit inside an FTTH enclosure or subscriber wall mount?
- Runtime requirement: Calculate total load power (W) → 92Wh ÷ load = hours.
- Future USB-C readiness: MUC85 is prepared for PD-based power architectures.
MUC85 sits alongside Mylion MU68 Mini UPS (standard 12V backup), MU35 Mini UPS (higher load), and MUJ46 Mini UPS (FTTH pole mount). For projects requiring custom voltages (9V/15V/20V) or remote monitoring, contact Mylion for OEM/ODM.

MU68 12V Mini UPS

MU35 DC Mini UPS

MUC85 USB-C Mini UPS

MU248 Mini UPS

FAQ

Q1: Is MUC85 just a large power bank?

No. A power bank lacks 0ms switching and true pass-through UPS mode. MUC85 eliminates the 100-300ms dropout that causes router reboots.

Q2: Which devices are compatible with MUC85?

Any 12V DC device drawing ≤5A (60W) - ONT, ONU, router, mini PC, IP camera. For 9V/15V/20V devices, Mylion offers custom voltage versions.

Q3: Can MUC85 run 24/7 in hot outdoor cabinets?

It is designed for indoor use with fire-retardant ABS and thermal protection. For extreme heat, add ventilation or choose Mylion’s industrial-grade MU series.

Q4: Which global certifications does MUC85 hold?

CE, FCC, IEC 62368-1, and UN38.3. These allow legal sales in EU/NA and safe air/sea freight.

Q5: How to deploy a Mini UPS for applications with higher loads

For higher loads or multi-device scenarios exceeding 65W, deploy multiple MUC85 units or upgrade to Mylion’s MU35 (12V/5A, 77.7Wh) for higher sustained output.

Q6: Can MUC85 be installed inside outdoor or unconditioned FTTH cabinets and wall enclosures?

MUC85 is rated for indoor use with fire-retardant ABS plastic (FR-ABS) and offers reliable performance in the 0–40 °C range.

Conclusion

The USB–C Mini UPS is not a simplified power bank; it is a re-engineered power protection layer for modern IP networks. MUC85 proves that true 0ms switching, 92Wh capacity, and full global certifications can fit into a 100×100×60mm fire‑retardant enclosure.

For ISPs and integrators, this means fewer truck rolls, lower churn, and a network that stays online when the grid fails.

Need USB-C Mini UPS for Modern Network Devices? Contact Mylion to request engineering samples or discuss OEM/ODM customization.
