From sprawling telecom networks and FTTH infrastructure to edge IoT deployments, maintaining stable, continuous power has elevated the strategic importance of the Mini UPS.
Two lithium-based chemistries dominate the Mini UPS market today: standard lithium-ion (typically NMC or LCO) and lithium iron phosphate (LiFePO4) . However, not all lithium batteries are engineered equally. For network operators, ISPs, and system integrators, understanding the nuanced differences in battery chemistry is the key to minimizing total cost of ownership (TCO) and eliminating network downtime.
This article examines the technological battle between standard Lithium-ion and LiFePO4 chemistries, illustrating why specific applications demand distinct power architectures. By the end, you’ll know exactly which chemistry belongs in your next backup power solution.
The Critical Role of Battery Chemistry in Mini UPS Systems
A DC UPS serves as the final line of defense against power grid volatility. Unlike traditional AC UPS systems, a Mini DC UPS is purpose-built to deliver targeted, low-voltage direct current (DC) directly to critical access devices—such as ONTs, ONUs, broadband routers, and remote IoT gateways.
These devices often exist in unmonitored environments, ranging from hot outdoor telecom enclosures to cramped utility boxes. Choosing the wrong battery chemistry for these conditions can lead to:
- Battery bloat and physical damage.
- Premature capacity degradation.
- Dangerous thermal events or combustion.
- Complete power failure during a critical outage.
Decision-makers must carefully weigh a battery’s chemical properties against the realities of their deployment environment.
What Is Standard Lithium-ion (Li-ion)?
When the industry refers to standard “Lithium-ion,” they usually mean Nickel Manganese Cobalt (NMC) or Lithium Cobalt Oxide (LCO). These are the same high-performance cells found in smartphones and electric vehicles.
The Science
Standard Lithium-ion chemistry boasts extraordinary energy density. The cobalt and nickel structure stores a massive amount of energy within a very tight physical footprint, making a Lithium-ion UPS incredibly compact.
Primary Strengths
- High Energy Density: Delivers maximum backup runtime in a small casing.
- Weight Reduction:Highly lightweight, enabling efficient shipping and installation.
- Fast Discharge Rates: Capable of delivering rapid bursts of high-current power.
What Is LiFePO4 (Lithium Iron Phosphate)?
LiFePO4 (Lithium Iron Phosphate) is a safer lithium-ion subtype using iron phosphate as the cathode. This chemistry is explicitly designed for endurance, safety, and stationary reliability.
The Science
The iron phosphate cathode features a highly robust covalent bond structure. Even if the battery is subjected to intense heat, short-circuiting, or severe damage, the cell will not release oxygen. This makes LiFePO4 virtually immune to combustion.
Primary Strengths
- Exceptional Safety:Unparalleled thermal stability for high-risk, unmonitored environments.
- Massive Lifecycle:Easily achieves 2,000 to 5,000+ charge cycles, lasting up to a decade.
- Temperature Tolerance:Performs reliably in extreme outdoor weather conditions.
- Consistent Output:Delivers stable voltage to connected routers until the battery is nearly depleted.
Head-to-Head: LiFePO4 vs. Standard Li-ion
1. Safety (Non-Negotiable)
For a device running 24/7, safety is mandatory.
LiFePO4 wins decisively. Its thermal runaway threshold is ~270°C, versus ~150°C for standard Li-ion. LiFePO4 is considered virtually non-flammable and can withstand significant abuse without catching fire. Standard lithium-ion batteries (especially LCO) carry a well-documented fire risk if punctured, overcharged, or overheated.
For an unattended Mini UPS sitting behind a router or in a closet, LiFePO4’s safety advantage is simply non-negotiable.

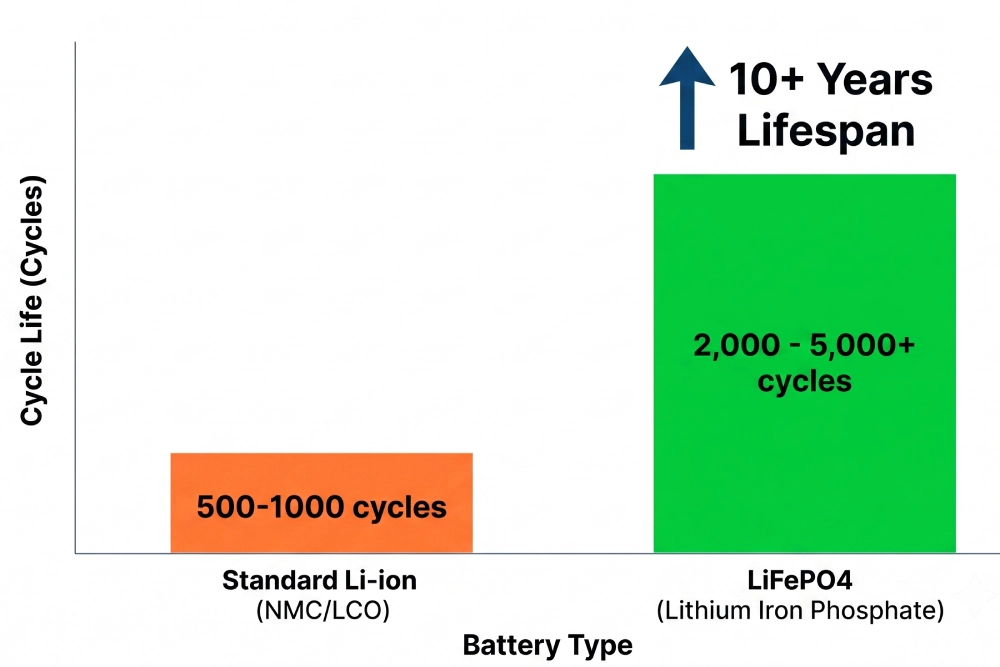

2. Cycle Life & Longevity
This is where LiFePO4 separates itself entirely.
Parameter | LiFePO4 | Standard Li-ion |
Cycle life | 2,000–5,000+ | 500–3,000 |
Calendar life | 8–15 years | 3–10 years |
Deep discharge tolerance | Excellent (80–100% DoD) | Reduced lifespan |
A quality LiFePO4 battery will likely outlive the Mini UPS itself—often over a decade of daily use.
3. Energy Density & Form Factor
If your only priority is the smallest possible device, standard Li-ion holds a slight edge. Its higher energy density allows a more compact design.
However, for Mini UPS applications, the size difference is often negligible. For example, the Mylion ML1202AC Mini UPS weighs just ~360 grams with its LiFePO4 battery—still highly portable and desk-friendly.
4. Temperature Tolerance
LiFePO4 operates reliably across a much wider temperature range (-20°C to 60°C) compared to standard Li-ion (0°C to 45°C). Standard Li-ion often stops charging below 0°C without a built-in heater.
For outdoor security cameras, remote telecom cabinets, or unheated spaces, LiFePO4 is the clear winner.
5. Environmental Impact
LiFePO4 contains no cobalt or nickel—metals linked to severe environmental damage and unethical mining. Plus, because it lasts 2–3 times longer, it generates significantly less battery waste over a decade. It’s the greener choice by a mile.
6. Total Cost of Ownership (TCO)
Upfront: Standard Li-ion is usually cheaper.
Long-term: LiFePO4 wins hands-down. The higher initial cost is quickly offset by longevity.
When analyzing LiFePO4 vs Lithium-ion, procurement teams must evaluate the total operational impact rather than just raw capacity.
Metric | Standard Lithium-ion (NMC/LCO) | LiFePO4 (Lithium Iron Phosphate) |
Cycle Life | 500 – 1,000 cycles (2-3 years) | 2,000 – 5,000+ cycles (7-10 years) |
Safety Profile | Prone to thermal runaway | Extremely stable; no fire risk |
Energy Density | High (Highly compact) | Moderate (Slightly larger footprint) |
Temperature Range | 0°C to 45°C (Indoor controlled) | -20°C to 60°C (Harsh/Outdoor capable) |
Total Cost (TCO) | Lower upfront, high replacement cost | Higher upfront, high long-term savings |
Environmental | Contains toxic heavy metals | Non-toxic, highly recyclable |
For mission-critical B2B power backup, LiFePO4 is the superior technology. It trades a slight increase in size for total operational safety and a significantly lower TCO.
Mylion Mini UPS Solutions: LiFePO4 and Lithium-Ion
As a top-tier Mini UPS producer, Mylion’s product lineup is split deliberately—LiFePO4 for safety-critical, long-life deployments, and lithium-ion for compact, cost-effective broadband backup.
LiFePO4 Models – Safety & Longevity First

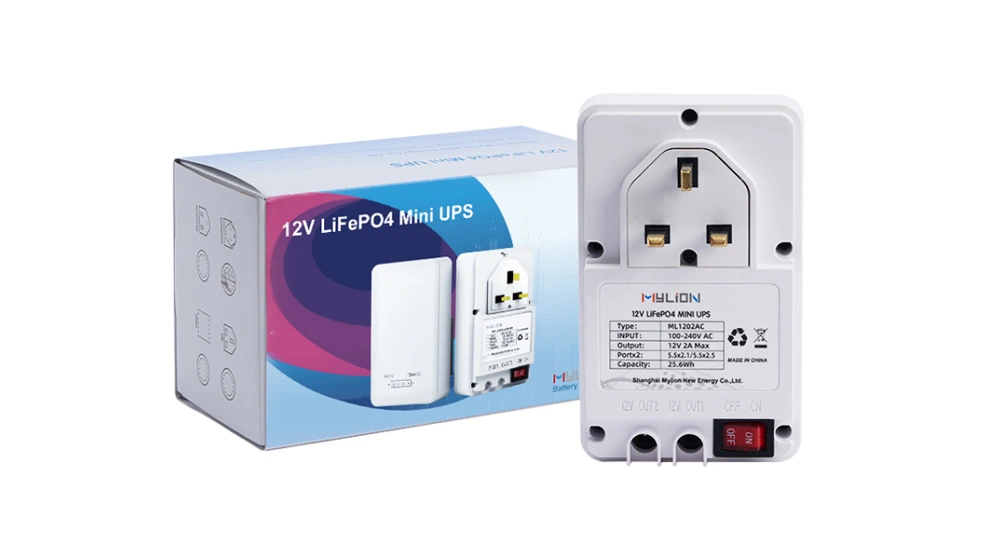

ML1202AC Mini UPS
MU248 Mini UPS
Lithium-Ion Models – Compact & High-Energy for Everyday Use
- MU68– Workhorse 12V/3A, 44.4Wh, 6–8h runtime – the go-to for standard ONT/ONU/fiber gateways.
- MU35– High-power 12V/5A, 77.7Wh, 10–13h runtime – for LTE/5G routers and heavy network loads.
- MU48 – Versatile 29.6Wh, 12V/3A, 4–5h runtime – for routers, modems, small switches, VoIP gateways.
- MU26 – Compact 19.24Wh, 12V/3A, 2–3h – ideal for low-power modems and basic FTTH devices.
- MUJ46– Hybrid unit with 12V/2A DC + USB-A/C outputs (38.48Wh, 5–6h) – great for router + USB accessories.
- MUC85– USB-C PD model (92Wh) with 65W input/output, 12–15h runtime – designed for WiFi 6/7 routers and USB-C network equipment.
Whether you value the unmatched endurance of LiFePO4 or the energy density of lithium-ion, Mylion delivers a purpose-built Mini UPS for every modem, router, and telecom backup scenario.
MUJ46 Mini UPS
MU68 Mini UPS
MU35 Mini UPS
MU26 Mini UPS
MUC85 Mini UPS
MU48 Mini UPS
FAQ
Q1: Is LiFePO4 the same as lithium-ion?
Q2: How long does a LiFePO4 Mini UPS battery last?
Q3: Is LiFePO4 safe for indoor use?
Q4: Why is LiFePO4 more expensive upfront?
Q5: Can I use a standard Li-ion charger for LiFePO4?
Q6: Does Mylion offer both types?
Conclusion
The choice between standard lithium-ion and LiFePO4 for Mini UPS boils down to one question: Do you prioritize initial compactness or long-term safety and value?
Standard Lithium-ion batteries excel in consumer electronics due to their ultra-compact size. For B2B applications where reliability, safety, and longevity are non-negotiable, LiFePO4 is the undisputed champion.

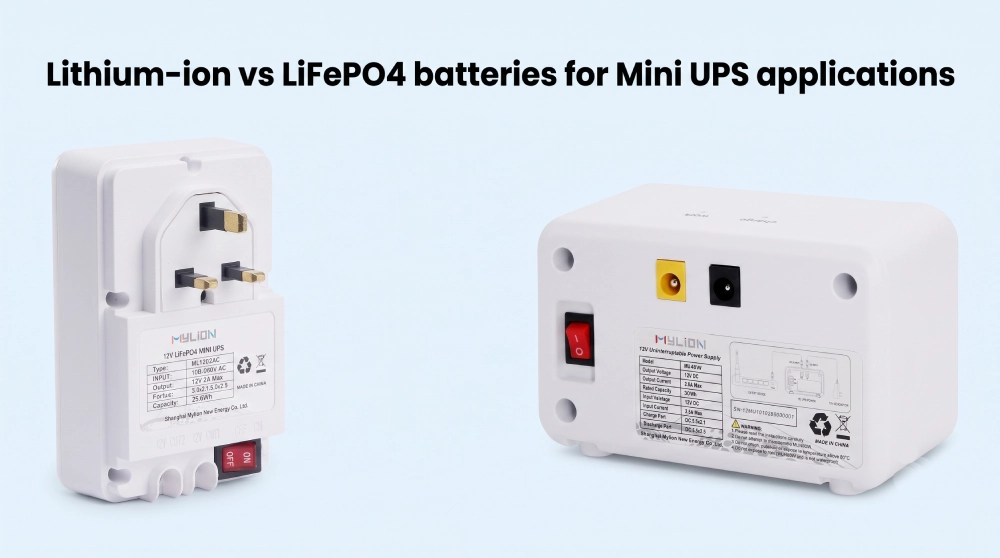

Mylion has built its Mini UPS lineup—including the ML1202AC and MU48—around this reality. Mylion Mini UPS solution provides the resilient power foundation necessary to guarantee uninterrupted service.
